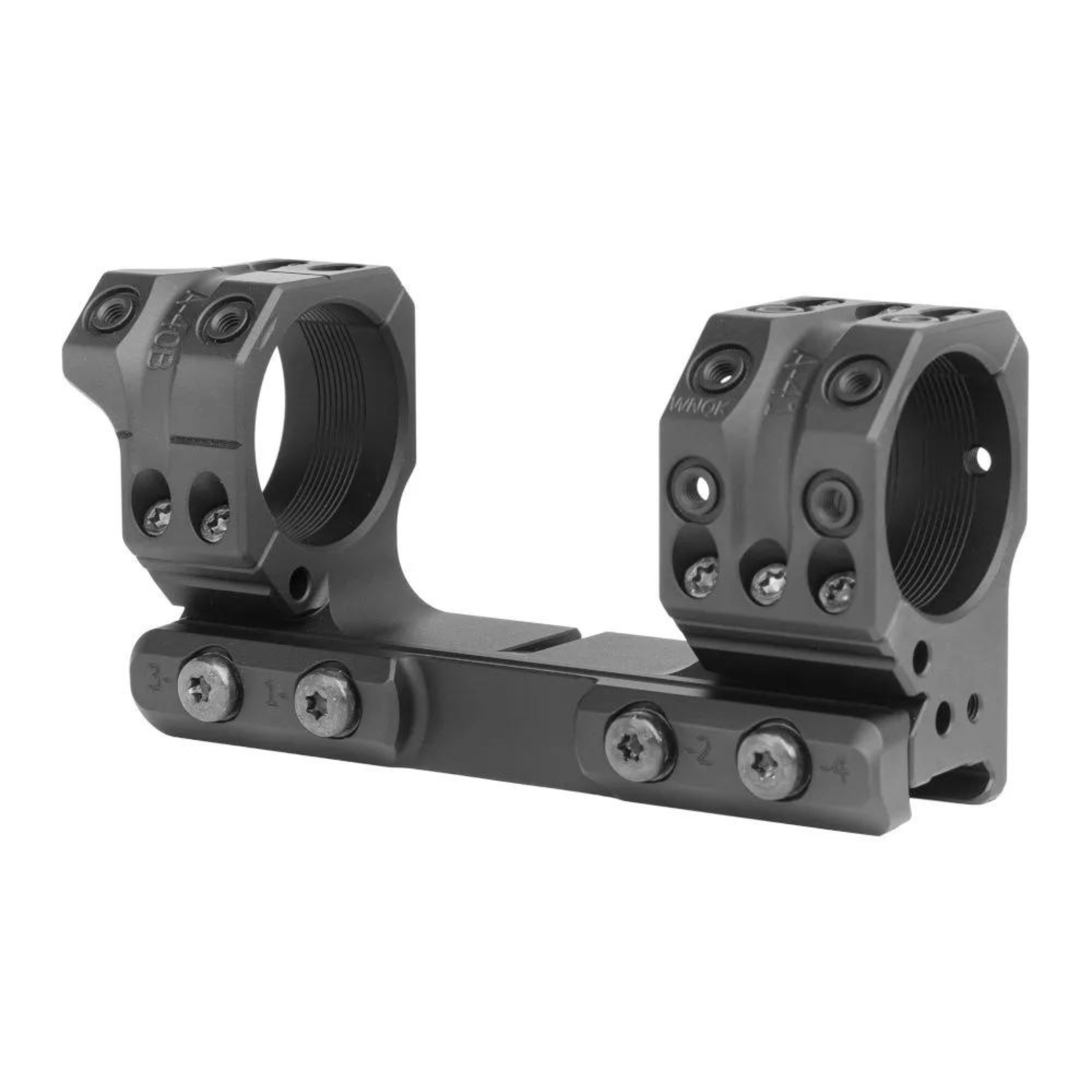

Spuhr Ø34 H38mm 10.3MOA block mount Gen 3

With Generation 3, Spuhr is bringing its latest assembly onto the market. There are a few changes compared to the previous model. The inner distance between the rings was extended by 9mm. The front ring is now slightly narrower, but can still accommodate the same accessory components. In addition, the overall length of the base body has also been shortened by 9mm. If the length of the upper shell is added, the length is 130mm. Overall, the assembly has become more flexible when it comes to positioning the rifle scope. The Spuhr SP-4302C Picatinny block mount with 38mm height of the optical axis and mount for 34mm tube diameter has a pre-tilt of 10.3 MOA or 3 MIL. This block assembly is particularly suitable for rifles that already have a rail with a 30MOA pre-inclination. So that the total advance is 40 MOA. The scope of delivery includes a 10° adjustment wedge.

Technical data:

• Height OA: 38mm
• Length: 120mm (with top shell 130mm)
• Weight: 256g
• Color: Black
• Material: aluminum
