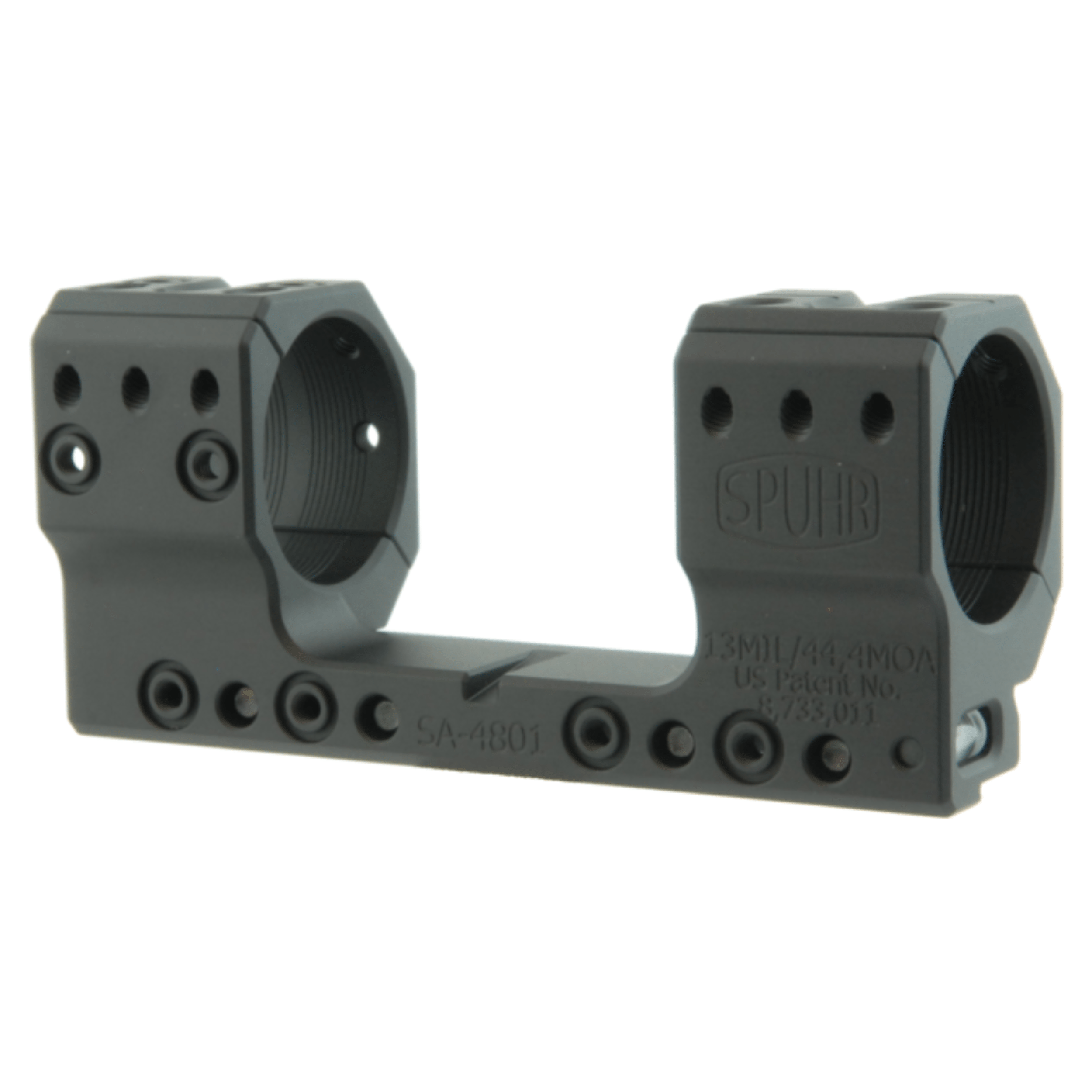

Spuhr Ø34 H30mm 44.4MOA AI block mount

The Spuhr block mount SP-4801 is for Picatinny rails with a 30mm height of the optical axis and a mount for 34mm center tube diameter.
The pre-tilt is 13 MIL / 44.4 MOA. A 10° adjustment wedge is included in the scope of delivery. Spuhr mounts with a height of H30 (Spuhr dimensions) = BH 13mm (ERA-TAC dimensions) are ideal for repeating rifles without a continuous rail with a sloping barrel contour and rifle scopes with a 62mm objective lens outer diameter and a 34mm center tube diameter.

Technical data:

• Height OA: 30mm
• Length: 121mm
• Weight: 224g
• Color: Black
• Material: aluminum
