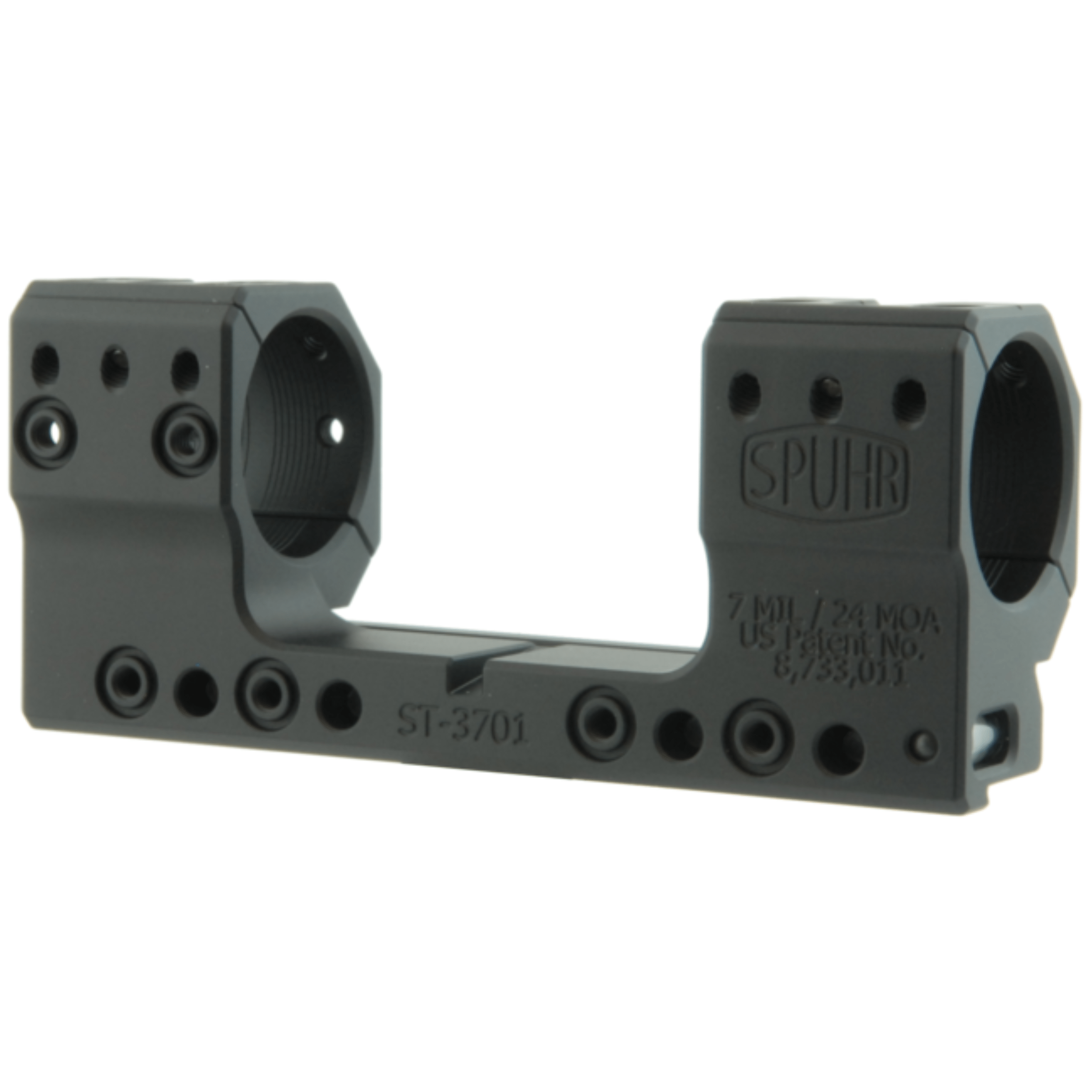

Spuhr Ø30 H35mm 24MOA TRG block mount

The IDEAL SCOPE MOUNT SYSTEM series offers seven different interfaces to attach more than 40 different accessories and features a level built into the rear plane of the mounting body to prevent the rifle from tipping. The rings are cut diagonally to increase the visibility of the elevation and windage towers (US Patent 8,733,011).

The assemblies are made from solid 7075 T651 aluminum, and all aluminum parts are hard anodized. The Torx 20 eye and tension screws are galvanized for increased corrosion resistance. The screws are pre-waxed at the factory to ensure correct torque values.

The assembly comes with an adjustable recoil screw, instructions and a "wedge" leveling wrench.

NOTE: The ST-3701 is designed for use on SAKO TRG-22, TRG-42 and Tikka T3x dovetails instead of MIL-STD-1913 or STANAG 4694 rails

Technical data:

• Rings: 30mm
• Tilt: 7 MIL / 24 MOA
• Height: 35mm / 1.378”
• Length: 126mm / 4.96”
• Weight: 241g / 8.5oz
• Interfaces: 7 sets
