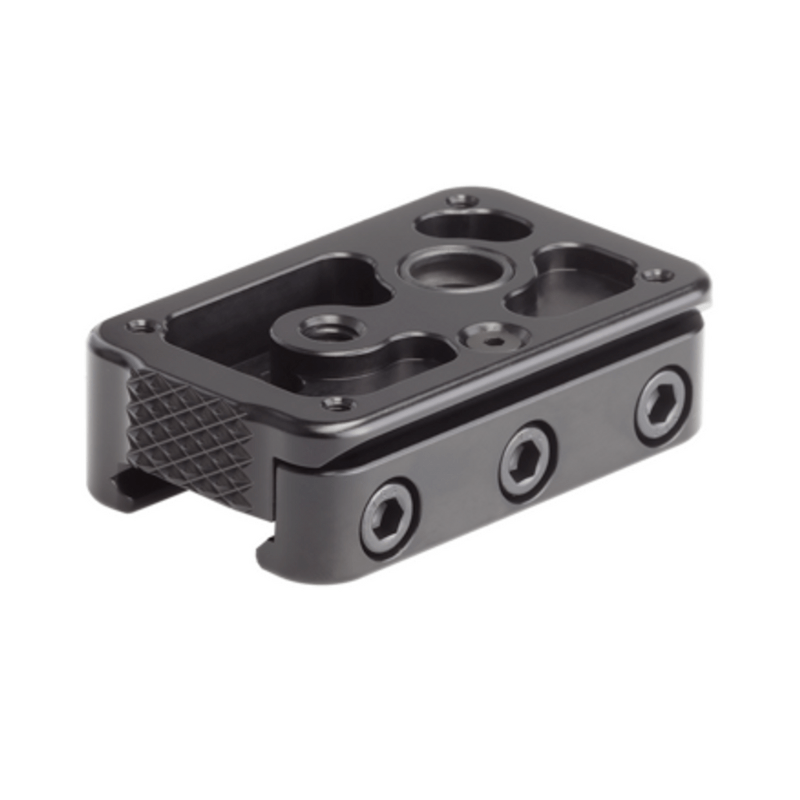

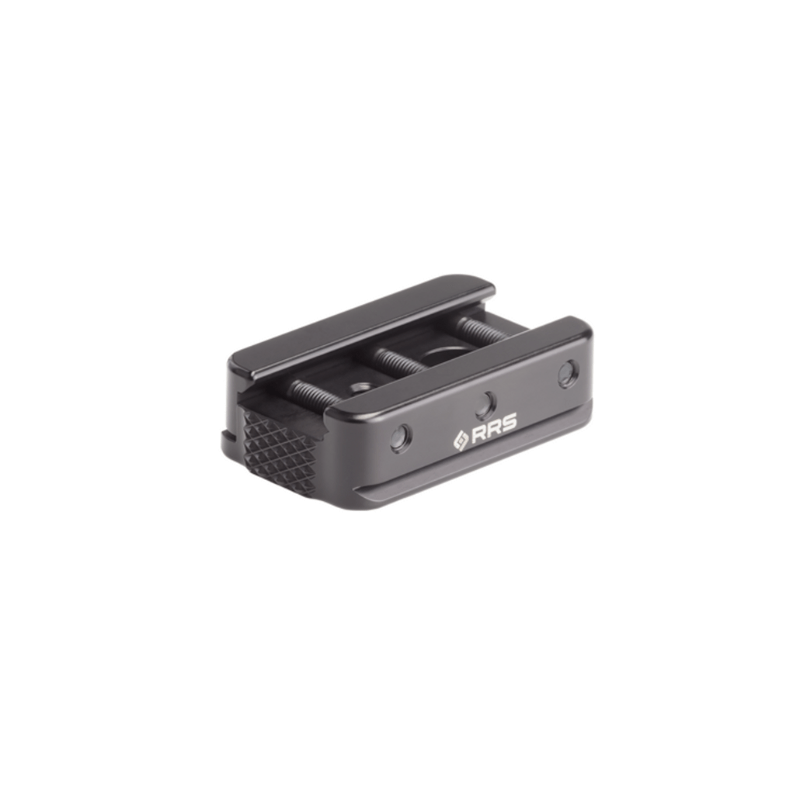

Really Right Stuff Picatinny to Dovetail Adapter

The Really Right Stuff NATO Dovetail offers a quick change feature for your NATO Accessory Rail and Mil Std 1913 Picatinny. The NATO Dovetail is milled from a solid block of aircraft aluminum.

The NATO Dovetail is a semi-permanent clamp mount. The RRS 1.5" Dovetail System allows equipment equipped with the NATO Dovetail to be quickly assembled and disassembled into RRS quick-release clamps while maintaining accurate alignment with your RRS support systems.

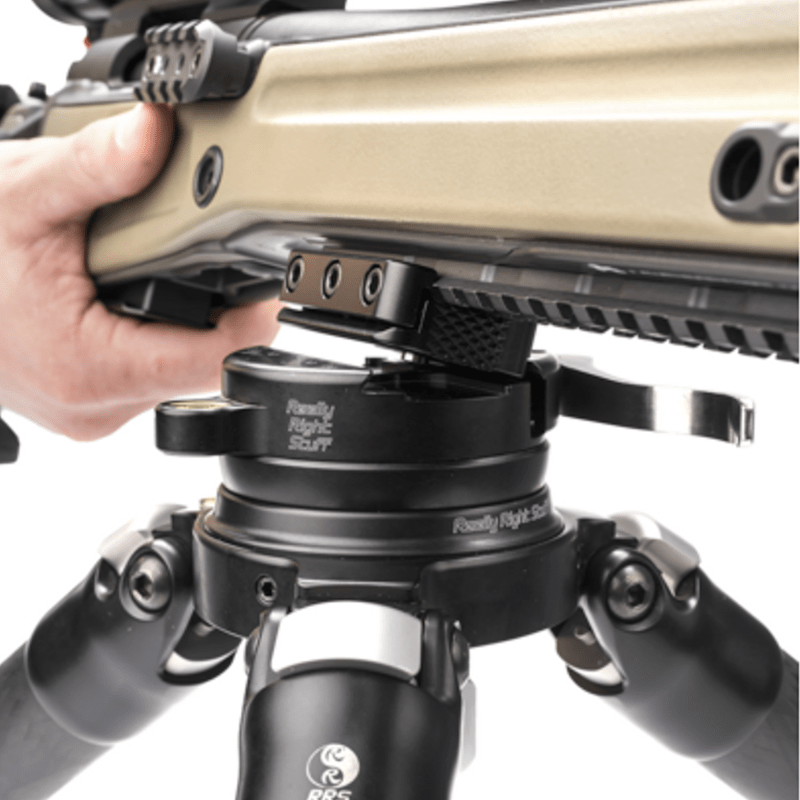

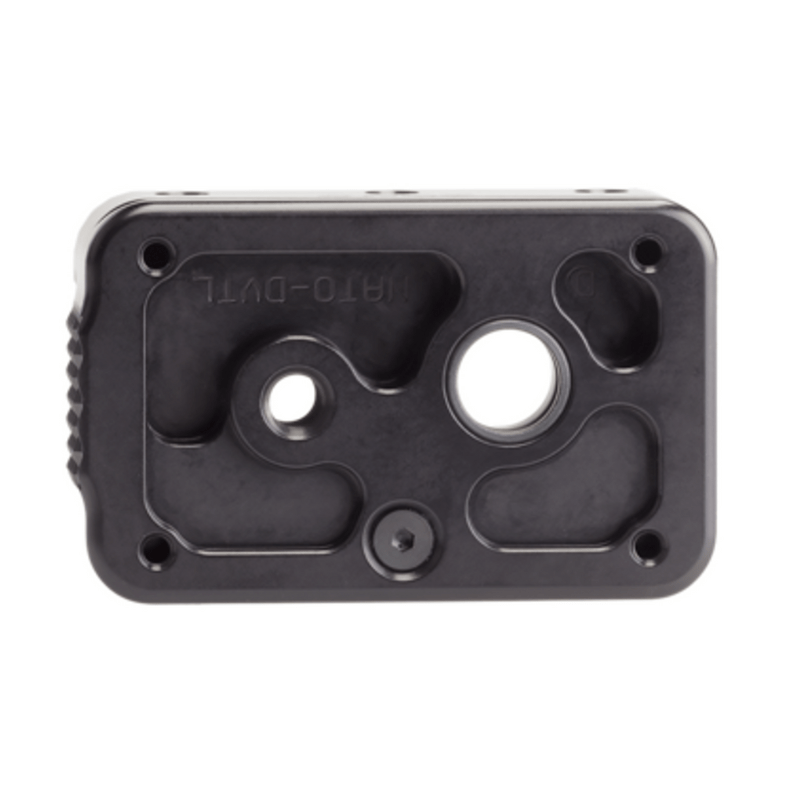

The bottom of the NATO Dovetail features 3/8 and 1/4"-20 mounting holes for accessories, allowing for direct mounting on tripods and ball heads.

The NATO dovetail is CNC machined and Type 3 hard anodized. It was designed from the ground up for maximum functionality, performance, robustness, ergonomic fit and aesthetics.

Characteristics:

• RRS 1.5" standard dovetail
• Left/right mounting
• Spring loaded jaws
• Aggressive grooved barricade stop
• CNC machined 7075-T6 aluminum
• All corners and edges are rounded for better feel and ergonomics
• Drum-like, satin surface
• Hard Anodized; Type-3 Black
• NATO STANAG 4694 specification for mounting on NATO Accessory Rail and Mil STD 1913 Picatinny
• (1) 1/4"-20 threaded hole for accessories

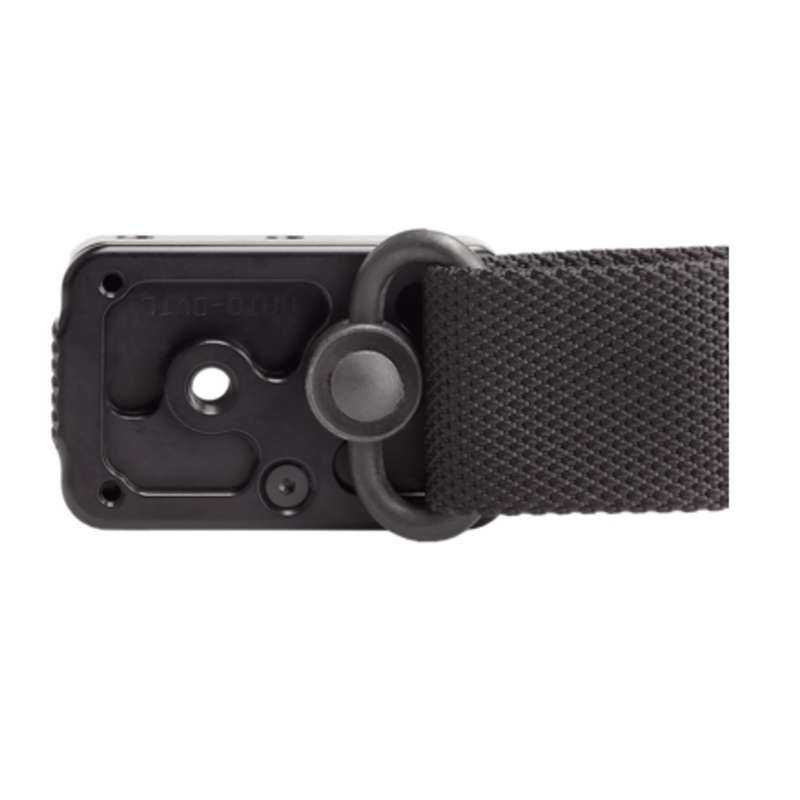

• (1) QD socket
• (1) 4 "M3 thread" holes for compatibility with the barricade stop (BSTP)
• RRS Dovetail Standard

Included:

• RRS NATO DVTL
• (3) Black Nitride Coated Alloy Steel 10/32-1/4 Socket Head Cap Screws
• Flat Head Alloy Steel Black Nitride Screw M3-0.50x6mm
• 1/8" Allen key
• 5/32" Allen key
• (2) Stop screws
• NATO-DVTL User Manual

Specifications:

• Length: 2.4" / 61mm
• Width: 1.5" / 38mm
• Height: 0.7" / 18mm
• Weight: 2.9oz / 83g
• Torque Specification: 25-30 in/lbs
